MARS LANDING TODAY!

MARS LANDING TODAY!

ESA (European Space Agency) has a probe named ” Schiaparelli” landing on Mars!

This Wednesday, Oct. 19th, a European Space Agency (ESA) probe named ” Schiaparelli” will parachute to the surface of Mars following a fiery plunge through the atmosphere. Launched from Earth last March, Schiaparelli hitched a ride to Mars onboard the Trace Gas Orbiter, a satellite that will spend the next few years scanning the Red Planet for chemical signs of life–especially biogenic methane. Follow the action on the ESA’s live webcast.

Source: Spaceweather

The 2016 ExoMars Trace Gas Orbiter is the first in a series of Mars missions to be undertaken jointly by the two space agencies, ESA and Roscosmos. A key goal of this mission is to gain a better understanding of methane and other atmospheric gases that are present in small concentrations (less than 1% of the atmosphere) but nevertheless could be evidence for possible biological or geological activity.

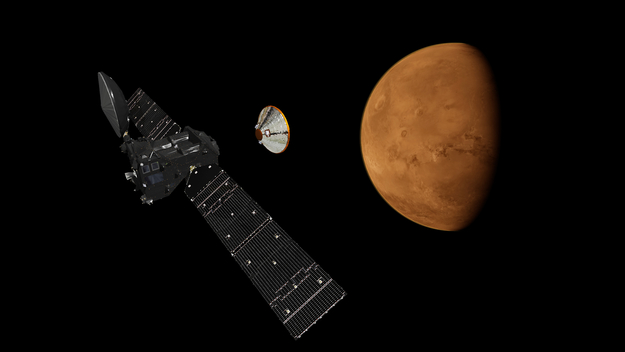

Schiaparelli separating from the Trace Gas Orbiter. Credit: ESA/ATG medialab

Investigations with observatories in space and on Earth have demonstrated the presence of small amounts of methane in the Martian atmosphere that has been shown to vary with location and time. Since methane is short-lived on geological time scales, its presence implies the existence of an active, current source of methane. It is not clear, yet, whether the nature of that source is biological or chemical. Organisms on Earth release methane as they digest nutrients. However, other purely geological processes, such as the oxidation of certain minerals, also release methane.

The Trace Gas Orbiter carries a scientific payload capable of addressing this scientific question, namely the detection and characterisation of trace gases in the Martian atmosphere. From its approximately 400-km-altitude science orbit, the instruments onboard the Trace Gas Orbiter will be deployed to detect a wide range of atmospheric trace gases (such as methane, water vapour, nitrogen oxides, acetylene), with an improved accuracy of three orders of magnitude compared to previous measurements.

The Trace Gas Orbiter will monitor seasonal changes in the atmosphere’s composition and temperature in order to create and refine detailed atmospheric models. Its instruments will also map the subsurface hydrogen to a depth of a metre, with improved spatial resolution compared with previous measurements. This could reveal deposits of water-ice hidden just below the surface, which, along with locations identified as sources of the trace gases, could influence the choice of landing sites of future missions.

Communicating on Mars

Deployment test of the high-gain antenna. Credit: ESA – B. Bethge

The Trace Gas Orbiter carries the Entry, Descent and landing demonstrator Module (EDM), known as Schiaparelli, on the journey from Earth towards Mars and, as it approaches the planet, deploys it for entering the Martian atmosphere on its way to land on the surface of the planet. After deployment, the Orbiter will monitor the UHF transmission from Schiaparelli from its coasting to Mars until its landing on the Red Planet. It will also facilitate the real-time transmission to Earth of the most important data measured by Schiaparelli.

Scientific investigations will take top priority until the second mission in the ExoMars programme begins, with the arrival of the ExoMars rover in 2021. At that stage the Orbiter will become a valuable Mars telecommunications asset, providing communication services to the Rover operating on the surface of Mars. The Orbiter will act as a data relay centre for sending commands to the rover and downloading data to Earth through the ESA space communications network.



The ExoMars Trace Gas Orbiter at a glance

During its operational lifetime the ExoMars Trace Gas Orbiter will perform three key roles:

  • Conduct investigations into the biological or geological origin of trace gases on Mars with a scientific payload of four instruments
  • Deliver Schiaparelli and support part of the data transmission during its descent and surface operations
  • Serve as a data relay to support communications for the ExoMars 2020 rover and the surface science platform



The ExoMars Trace Gas Orbiter Design

The Trace Gas Orbiter spacecraft, designed by ESA, builds on the heritage accumulated from earlier ExoMars mission scenarios. The main characteristics of the Orbiter are determined by the functions that it will perform and the launch vehicle, a Proton launcher, provided by Roscosmos.



Main technical characteristics of the ExoMars Trace Gas Orbiter

Spacecraft 3.2 m × 2m × 2m with solar wings spanning 17.5 m tip-to-tip providing approximately 2000 W of power
Launch mass 4332 kg (including 113.8 kg of science payload and 577 kg Schiaparelli)
Propulsion Bipropellant, with a 424 N main engine for Mars orbit insertion and major manoeuvres
Power In addition to power generated by the solar wings, 2 lithium-ion batteries will be used to cover eclipses, with ~ 5100 Wh total capacity
Communication 65 W X-band system with 2.2-m-diameter high-gain antenna and 3 low-gain antennas for communication with Earth; Electra UHF band transceivers (provided by NASA) with a single helix antenna for communication with surface rovers and landers
Science instrument package Atmospheric Chemistry Suite (ACS); Colour and Stereo Surface Imaging System (CaSSIS); Fine Resolution Epithermal Neutron Detector (FREND); Nadir and Occultation for Mars Discovery (NOMAD)
Nominal mission end 2022

Source: ESA

One of the core scientific goals of any mission to Mars is the search for evidence of life. The best approach is to investigate the surface where the evidence may lie.

The key element for accessing the surface of Mars and one of the greatest challenges in space exploration is the successful execution of the entry, descent and landing sequence.

This is one of the reasons why since the late 1960s there have been so many missions attempting to land on the surface of Mars, some being successful, many others ill-fated.

Schiaparelli – an entry, descent and landing demonstrator module – is a technology demonstration vehicle carried by the ExoMars Trace Gas Orbiter (TGO). Schiaparelli and TGO were launched on 14 March 2016 on a Proton rocket from the Baikonur cosmodrome in Kazakhstan.  Schiaparelli will demonstrate the capability of ESA and European industry to perform a controlled landing on the surface of Mars. The preparation for this mission enhances Europe’s expertise and enables the testing of key technologies which could be used in subsequent missions to Mars.

The ExoMars Trace Gas Orbiter and Schiaparelli during vibration testing.
Credit: ESA–S. Corvaja, 2015

Although designed to demonstrate entry, descent and landing technologies, Schiaparelli also offers limited, but useful, science capabilities. It will deliver a science package that will operate on the surface of Mars for a short duration after landing, planned to last approximately 2-4 sols (Martian days).



Arriving at Mars

Schiaparelli has started its journey to Mars attached to the Trace Gas Orbiter. They were launched on a Proton rocket on 14 March 2016 and will arrive approximately 7 months later at Mars.

Coast

  • Three days before reaching the atmosphere of Mars, on 16 October, Schiaparelli separated from the Orbiter.
  • The module is now coasting to Mars during which phase it will remain in hibernation mode in order to reduce its power consumption.
  • Schiaparelli will be activated a few hours before entering the atmosphere of Mars, at an altitude of 122.5 km and a speed of approximately 21 000 km/h.
Schiaparelli descent sequence. Credit: ESA/ATG medialab

Entry

  • An aerodynamic heatshield will protect Schiaparelli from the severe heat flux and deceleration, so that at an altitude of about 11 km, when the parachure is deployed, it will be travelling at around 1650 km/h.

Descent

  • The module will first release the front heatshield and then the rear heatshield will also be jettisoned.
  • Schiaparelli will turn on its Doppler radar altimeter and velocimeter to locate its position with respect to the Martian surface.

Landing

  • The liquid propulsion system will be activated to reduce the speed to less than 7 km/h when it is 2m above the ground. At that moment the engines will the switched off and the lander will drop to the ground.
  • As Schiaparelli lands, the final shock will be cushioned by a crushable structure built into module.
  • The primary landing site has been identified: it is a plain known as Meridiani Planum. This area interests scientists because it contains an ancient layer of hematite, an iron oxide that, on Earth, almost always forms in an environment containing liquid water.

A communication link between Schiaparelli and the Trace Gas Orbiter will facilitate the real-time transmission of the most important data measured by the module. The complete set of data acquired will be transmitted to the Orbiter within 8 sols after the landing (a solar day on Mars, or sol, is 24 hours and 37 minutes).



Descent and landing at a glance

Three days before reaching Mars, on 16 October, Schiaparelli separated from the Trace Gas Orbiter and is now coasting towards the planet in hibernation mode, to reduce its power consumption.
Schiaparelli will be activated a few hours before entering the atmosphere of Mars at an altitude of 122.5 km and a speed of 21 000 km per hour.
An aerodynamic heatshield will slow the lander down such that at an altitude of about 11 km, when the parachute is deployed, it will be travelling at around 1650 km per hour.
Schiaparelli will release its front heatshield at an altitude of about 7 km and turn on its radar altimeter, which can measure the distance to the ground and its velocity relative to the surface. This information is used to activate and command the liquid propulsion system once the rear heatshield and parachute have been jettisoned 1.3 km above the surface.
At this point, Schiaparelli will still be travelling at nearly 270 km per hour, but the engines will slow it to less than 7 km per hour by the time it is 2 m above the surface.
At that moment, the engines will be switched off and Schiaparelli will free-fall to the ground, where the final impact, at just under 11 km per hour, will be cushioned by a crushable structure on the base of the lander.
Schiaparelli will arrive at Mars during the global dust storm season, which means that it may encounter a highly dust-loaded atmosphere.
The heat shield surface temperature during entry reaches approximately 1500°C.
The landing is controlled but not guided, and the module has no obstacle avoidance capability
Schiaparelli will target a landing site on the plain known as Meridiani Planum
Schiaparelli will be designed to be capable of landing on a terrain with rocks as high as 40 cm and slopes as steep as 12.5°.



The ExoMars Schiaparelli Design

Schiaparelli builds on a heritage of designs that have been evaluated and tested by ESA during earlier ExoMars studies. The module accommodates a series of sensors that will monitor the behaviour of all key technologies during the mission. These technologies include a special material for thermal protection, a parachute system, a radar Doppler altimeter system, and a braking system controlled by liquid propulsion. The data will be sent back to Earth for post-flight reconstruction in support of future European missions to Mars.

The main characteristics of Schiaparelli are provided in the table below:



Main technical characteristics of Schiaparelli – the ExoMars Entry, Descent and Landing Demonstrator Module

Diameter
Height
2.4 m with heatshield, 1.65 m without heatshield
1.8 m high
Mass 577 kg (wet)
Heat shield material Norcoat Liège
Structure Aluminium sandwich with Carbon Fiber Reinforced Polymer skins
Parachute Disk-Gap-Band canopy, 12 m diameter
Propulsion 3 clusters of 3 hydrazine engines (400 N each), operated in pulse-modulation
Power Primary batteries
Communications UHF link with the ExoMars Orbiter (with 2 antennas)

The design activities are performed by European industry, led by Thales Alenia Space – Italy under the close supervision of ESA.

Schiaparelli science and engineering sensors

Because Schiaparelli is primarily demonstrating technologies needed for landing, it does not have a long scientific mission lifetime: it is intended to survive on the surface for just a few days by using the excess energy capacity of its batteries. However, a set of engineering and scientific sensors will analyse the local environment during descent and after landing.

Schiaparelli carries a small science payload, called DREAMS (Dust Characterisation, Risk Assessment, and Environment Analyser on the Martian Surface), to study the environment. DREAMS consists of a suite of sensors to measure the local wind speed and direction (MetWind), humidity (DREAMS-H), pressure (DREAMS-P), atmospheric temperature close to the surface (MarsTem), the transparency of the atmosphere (Solar Irradiance Sensor, SIS), and atmospheric electric fields (Atmospheric Radiation and Electricity Sensor; MicroARES) at Mars. The payload will operate on the surface of Mars for 2–8 sols.

Schiaparelli – without heat shield and back cover. Credit: ESA/ATG medialab

In addition, there is an investigation known as AMELIA, for entry and descent science data collection using the spacecraft engineering sensors.

A separate instrumentation package, COMARS+, will monitor the heat flux on the back cover of Schiaparelli as it passes through the atmosphere.

A compact array of laser retroreflectors, called INRRI, is attached to the zenith-facing surface of Schiaparelli. This can be used as a target for Mars orbiters to laser-locate the module.

Source: ESA
